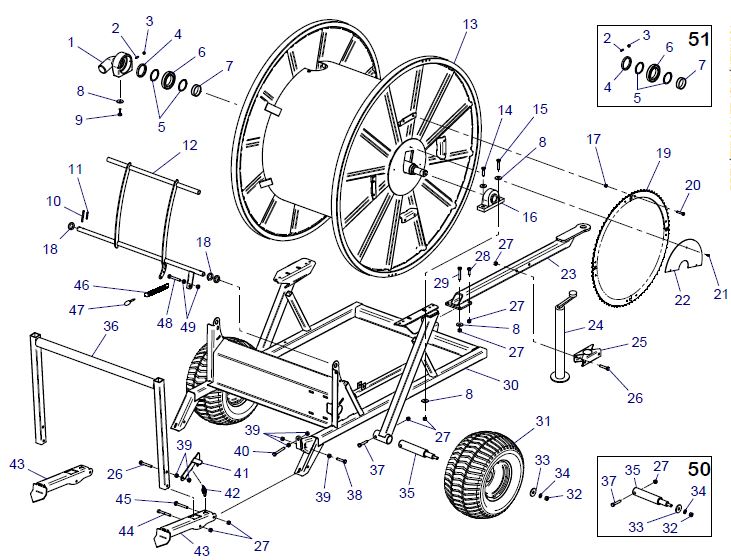

Image Item No. Article
1 8289418 Sealing part

Sealing part

A1, A2

Weight: 0.87 kg
Product group: 63
2 0611368 Headless screw DIN 915-M 6X 2

Headless screw DIN 915-M 6X 2

Weight: 0.002 kg
Product group: 66
3 0611550 nut DIN934 - M6

nut DIN934 - M6

hex. nut - 8 - galvanized

Weight: 0.01 kg
Product group: 66
4 0616450 Grooved ring NI 150, 60 - 72

Grooved ring NI 150, 60 - 72

80 NBR 878

Weight: 0.01 kg
Product group: 63
5 0616072 Retaining ring DIN 471 60X2

Retaining ring DIN 471 60X2

MMS600-800

Weight: 0.01 kg
Product group: 66
6 0615086 Grooved ball bearing 6012-2RS

Grooved ball bearing 6012-2RS

Weight: 0.4 kg
Product group: 62
7 8348827 Seal bushing

Seal bushing

Smart Rain

Weight: 0.05 kg
Product group: 63
8 0612134 FLAT WASHER 11

FLAT WASHER 11

Weight: 0.015 kg
Product group: 66
9 0611122 bolt DIN933 - M10x30

bolt DIN933 - M10x30

hexagonal - 8.8 - galvanized

Weight: 0.03 kg
Product group: 66
10 0615730 ROLL PIN 6 X 60

ROLL PIN 6 X 60

Weight: 0.01 kg
Product group: 66
11 0615727 roll pin 6x36 galv.

roll pin 6x36 galv.

Weight: 0.01 kg
Product group: 66
12 8351381 Shut-off frame welded A1-A2

Shut-off frame welded A1-A2

A

Weight: 2.9 kg
Product group: 63
13 8351201 Haspel kpl. A2

Haspel kpl. A2

verzinkt

Weight: 96.85 kg
Product group: 32
14 0611023 bolt DIN933 - M10x40

bolt DIN933 - M10x40

hexagonal - 8.8 - galvanized

Weight: 0.03 kg
Product group: 66
15 0611125 bolt DIN933 - M10x50

bolt DIN933 - M10x50

hexagonal - 8.8 - galvanized

Weight: 0.03 kg
Product group: 66
16 0615257 PILLOW BLOCK UCP 207

PILLOW BLOCK UCP 207

DIN 626

Weight: 1.58 kg
Product group: 66
17 0611547 nut DIN980 - M8

nut DIN980 - M8

self locking - 8 - galvanized

Weight: 0.01 kg
Product group: 66
19 8348830 Segment 1/2" , A1-A3

Segment 1/2" , A1-A3

Weight: 0.52 kg
Product group: 63
20 0611110 bolt DIN933 - M8x20

bolt DIN933 - M8x20

hexagonal - 8.8 - galvanized

Weight: 0.011 kg
Product group: 66
21 0611924 BOLT DIN7976-B 4.8X13

BOLT DIN7976-B 4.8X13

Weight: 0.01 kg
Product group: 66
22 8348831 Abdeckscheibe

Abdeckscheibe

A3

Weight: 0.33 kg
Product group: 63
23 8351020 Deichsel geschw.

Deichsel geschw.

A2

Weight: 7.5 kg
Product group: 63
24 8351041 supporting leg P242,

supporting leg P242,

crank supporting leg with base plate

Weight: not available
Product group: 63
25 8351042 Klemmschelle MR1001

Klemmschelle MR1001

zu Kurbelstützfuß ø48

Weight: 0.131 kg
Product group: 63
26 0611179 BOLT DIN933 M10X70

BOLT DIN933 M10X70

Weight: 0.05 kg
Product group: 66
27 0611545 nut DIN980 - M10

nut DIN980 - M10

self locking - 8 - galvanized

Weight: 0.01 kg
Product group: 66
28 0611122 bolt DIN933 - M10x30

bolt DIN933 - M10x30

hexagonal - 8.8 - galvanized

Weight: 0.03 kg
Product group: 66
29 0611096 BOLT DIN 931 M 10X90

BOLT DIN 931 M 10X90

Weight: 0.06 kg
Product group: 66
30 8351001 Rahmen geschw.

Rahmen geschw.

A2

Weight: 43.5 kg
Product group: 63
31 8348895 Wheel 18x9.50-8 4PR - CR307

Wheel 18x9.50-8 4PR - CR307

rim no.1 with cap ( 5.50 B-8 H2 25/65 CUSC.6205-2RS )

Weight: 8.4 kg
Product group: 32
32 0611553 nut DIN934 - M12

nut DIN934 - M12

hex. nut - 8 - galvanized

Weight: 0.01 kg
Product group: 66
33 0612135 washer DIN440 - R14 galv.

washer DIN440 - R14 galv.

Weight: 0.04 kg
Product group: 66
34 0612218 LOCK WASHER DIN 127 B12

LOCK WASHER DIN 127 B12

Weight: 0.01 kg
Product group: 66
35 8351031 Achsstummel

Achsstummel

A2

Weight: 1.86 kg
Product group: 63
36 8351055 Stativlift geschw. A1,A2

Stativlift geschw. A1,A2

A1, A2

Weight: 8.15 kg
Product group: 63
37 0611134 bolt DIN933 - M10x60

bolt DIN933 - M10x60

hexagonal - 8.8 - galvanized

Weight: 0.04 kg
Product group: 66
38 0611125 bolt DIN933 - M10x50

bolt DIN933 - M10x50

hexagonal - 8.8 - galvanized

Weight: 0.03 kg
Product group: 66
39 0611563 nut DIN934 - M10

nut DIN934 - M10

hex. nut - 8 - galvanized

Weight: 0.012 kg
Product group: 66
40 0611130 bolt DIN933 - M10x80

bolt DIN933 - M10x80

hexagonal - 8.8 - galvanized

Weight: 0.05 kg
Product group: 66
41 8351058 Haken

Haken

A1, A2

Weight: 0.3 kg
Product group: 63
42 5430306 SPRING I

SPRING I

Weight: 0.015 kg
Product group: 62
43 8351052 Abstützung

Abstützung

A2

Weight: 2.05 kg
Product group: 63
44 0611256 BOLT DIN912 M10X75

BOLT DIN912 M10X75

Weight: 0.053 kg
Product group: 66
45 0611027 HEX. BOLT DIN 931 - M 10 X 75

HEX. BOLT DIN 931 - M 10 X 75

Weight: 0.05 kg
Product group: 66
46 8250950 SPRING

SPRING

rust proof

Weight: 0.04 kg
Product group: 63
47 0619054 CHAIN G 24- TURNED - OVAL

CHAIN G 24- TURNED - OVAL

Weight: not available
Product group: 66
48 0611180 bolt DIN933 - M8x50

bolt DIN933 - M8x50

hexagonal - 8.8 - galvanized

Weight: 0.021 kg
Product group: 66
49 0611561 nut DIN934 - M8

nut DIN934 - M8

hex. nut - 8 - galvanized

Weight: 0.01 kg
Product group: 66
50 8345330 Repair kit axle stub

Repair kit axle stub

A2, consists of: item 27,32,33,34,35,37

Weight: 2 kg
Product group: 63
51 8345382 Rep kit drum bearing

Rep kit drum bearing

RAINSTAR A 1, A 2, A 3

Weight: 0.6 kg
Product group: 63
