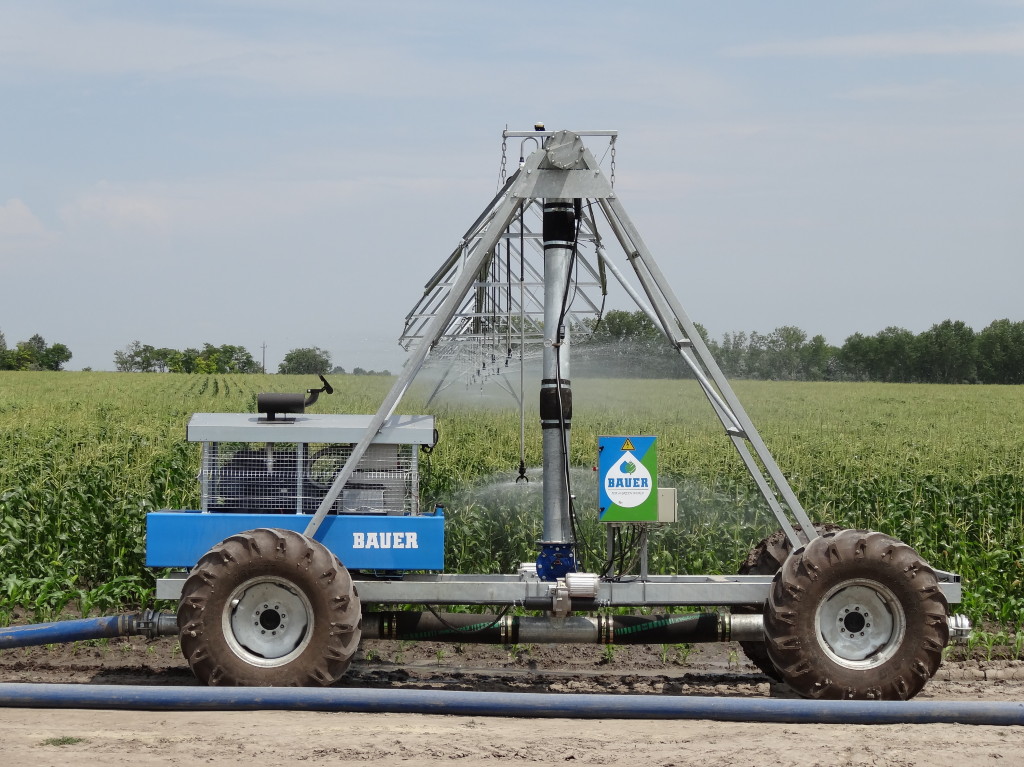

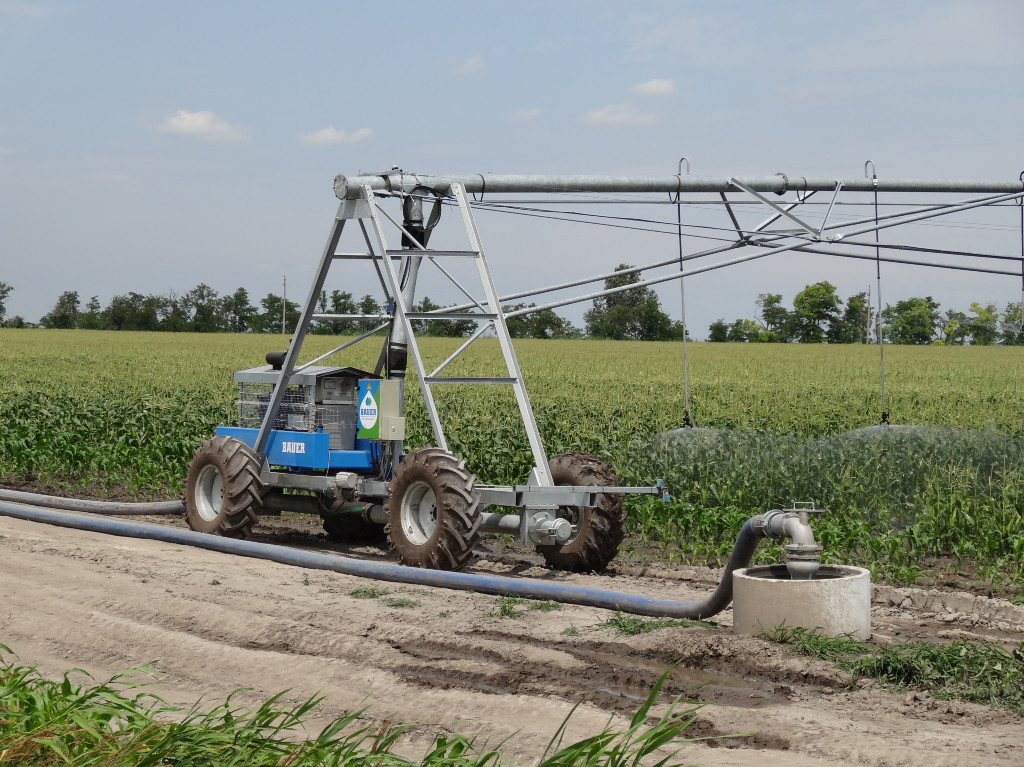

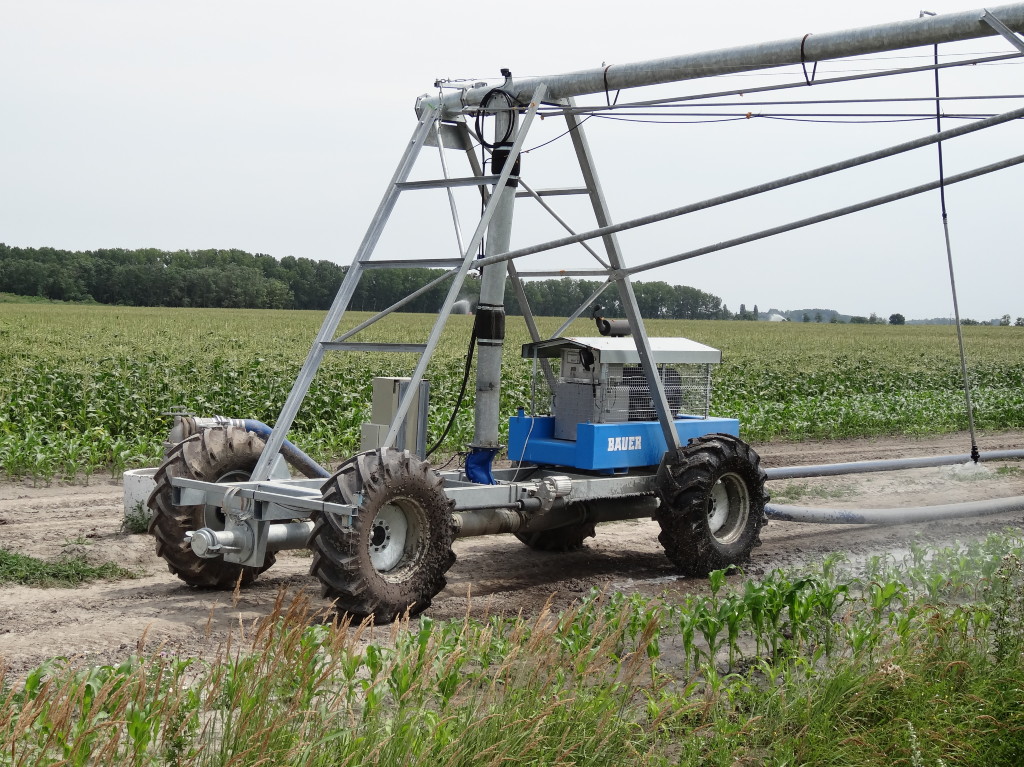

Standard extent of supply 4-wheel central unit hose feed

for one- or double sided feed

  • 4 gear boxes
  • 2 drive motors 0,55kW
  • Mounted riser pipe
  • 2 connections for supply line including HK coupling

- without tires

Item No. Article
8520918 Zentraleinheit 203/168 LL-4W

Zentraleinheit 203/168 LL-4W

4-Rad; ( ohne Räder ) für ein- oder beidseitigen Ausleger

Weight: 415 kg
Product group: 33
8513825 Tires 14,9-24 - 4 wheels

Tires 14,9-24 - 4 wheels

for drive cart with "Traction - Profile" and galvanized rims

Weight: not available
Product group: 33
8513826 Tires 16,9-24 - 4 wheels

Tires 16,9-24 - 4 wheels

for drive cart with "Traction - Profile" and galvanized rims

Weight: not available
Product group: 33
8511022 Doppelanschluss HK133 Kpl.

Doppelanschluss HK133 Kpl.

System 9000

Weight: not available
Product group: 33
8511023 Doppelanschluss HK159 Kpl.

Doppelanschluss HK159 Kpl.

System 9000

Weight: not available
Product group: 33
Item No. Article (l) (m) (u/min) (4) Querschnittbreite(mm) (m³) (m) Außen Ø max.(mm) (m³) (mm) (kW) Tragfähigkeit bei 25 km/h min-max(kg) (mm) Luftdruck min-max(bar) (kW) (min-1) (left)
8503190 Electric shut-off valve DN 150

Electric shut-off valve DN 150

flanged connection DN150 with bolts and gaskets

Weight: 50 kg
Product group: 33
8503185 Electric shut-off valve DN 200

Electric shut-off valve DN 200

flanged connection DN200 with bolts and gaskets

Weight: 50 kg
Product group: 33

Generator units

Selecton of generator units: possible number of spans for systems w i t h o u t / w i t h booster pump:

Generator unit 2/4-wheel drive cart 2/4-wheel drive cart + booster
11kVA 4 -
15 kVA 7 4
20 kVA 12 8
30 kVA 16 14



Item No. Article (l) (m) (u/min) (4) Querschnittbreite(mm) (m³) (m) Außen Ø max.(mm) (m³) (mm) (kW) Tragfähigkeit bei 25 km/h min-max(kg) (mm) Luftdruck min-max(bar) (kW) (min-1) (left)
0646516
Weight: 900 kg
Product group: 33
0646517
Weight: 900 kg
Product group: 33
0646518
Weight: 800 kg
Product group: 33
0646550 Generatoragg. F32AM1A + 20kVA

Generatoragg. F32AM1A + 20kVA

F32AM1A+20 KVA mit Tank 400 ltr. ND

Weight: 950 kg
Product group: 33
0646556 Generatoragg. F32AM1A +30kVA-S

Generatoragg. F32AM1A +30kVA-S

F32AM1A+30 KVA mit Tank 400 ltr. für Rahmen 851 7461

Weight: 1140 kg
Product group: 33
0646560 Generatoragg. 3029D+20kVA

Generatoragg. 3029D+20kVA

John DEERE 3029D+ 20kVA mit Tank 400ltr. ND

Weight: not available
Product group: 33
0648536
Weight: not available
Product group: 63

Supply hose

  • Made from PU- wear resistant
  • Complete with BAUER HK-coupling
Dimension Length Q
Ø4" / HK 108 max. 160m 120 m³/h
Ø4 1/2" / HK 133 max. 130m 150 m³/h
Ø5" / HK 133 max. 105m 200 m³/h
