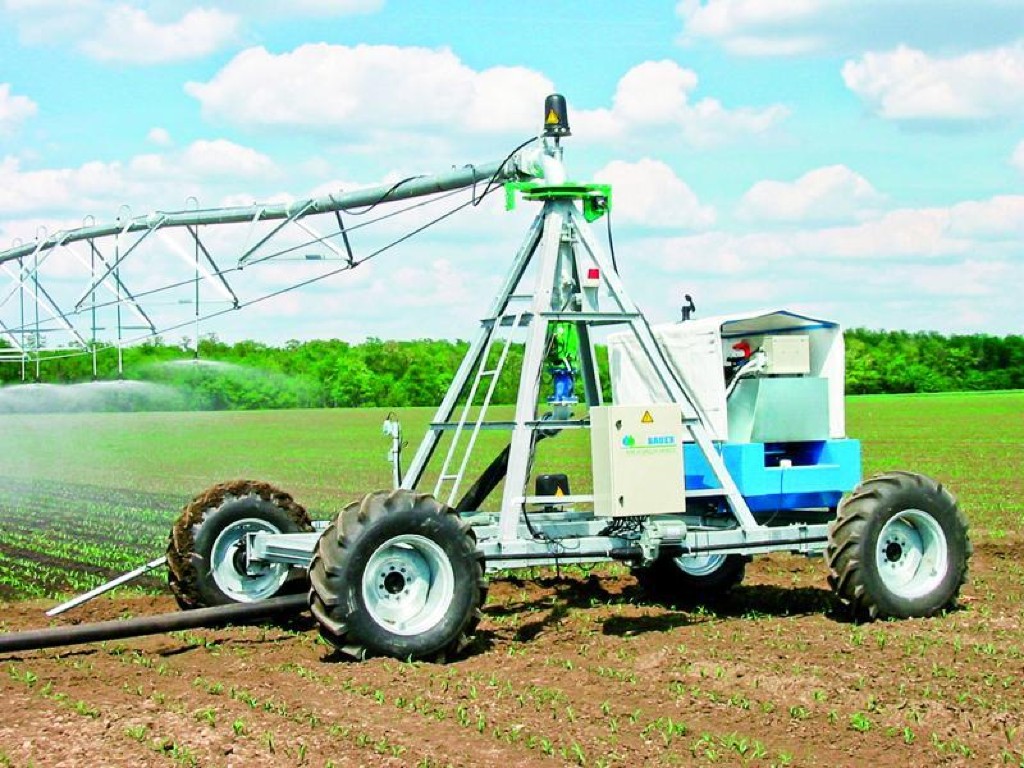

Standard extent of supply central unit 168 CLS

  • Position control for rotation of the boom
  • Complete riser pipe
  • 2 drive motors 0,55kW
  • 4 gear boxes
  • 2 rigid front unit connections with HK coupling

towable: - design like 168 CLS - but with rotating drive gear boxes including free-wheel device and additional drawbar for towing the central unit

- without tires

Item No. Article
8520910 Zentraleinheit 168 CLS

Zentraleinheit 168 CLS

mit automatischer Schwenkeinrichtung für Ausleger

Weight: 415 kg
Product group: 33
8520911 Zentraleinheit 168 CLS-T

Zentraleinheit 168 CLS-T

überziehbar - mit autom. Schwenkeinrichtung für Ausleger

Weight: 415 kg
Product group: 33
8511022 Doppelanschluss HK133 Kpl.

Doppelanschluss HK133 Kpl.

System 9000

Weight: not available
Product group: 33
8511023 Doppelanschluss HK159 Kpl.

Doppelanschluss HK159 Kpl.

System 9000

Weight: not available
Product group: 33

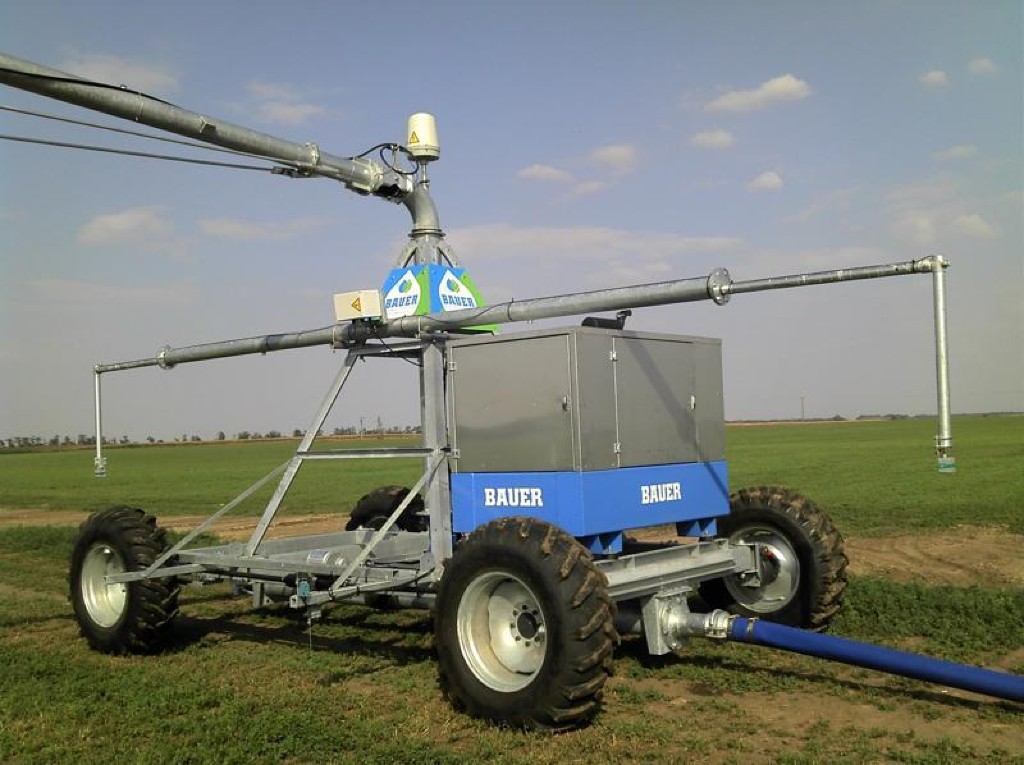

Standard extent of supply central unit 168 CLE

  • Position control for rotation of the boom
  • Complete riser pipe
  • 2 drive motors 0,55kW
  • 4 gear boxes
  • Flexible hose

towable  - design like 168 CLE - but with rotating gear boxes including free wheel device and additional drawbar for towing the central unit.

- without tires

Design is still system 5000!

Item No. Article
8520172 Drive cart 168 CLE

Drive cart 168 CLE

with automatic swivel assembly for boom

Weight: not available
Product group: 33
8520173 Drive cart 168 CLE-T

Drive cart 168 CLE-T

towable, with automatic swivel assembly for boom

Weight: not available
Product group: 33

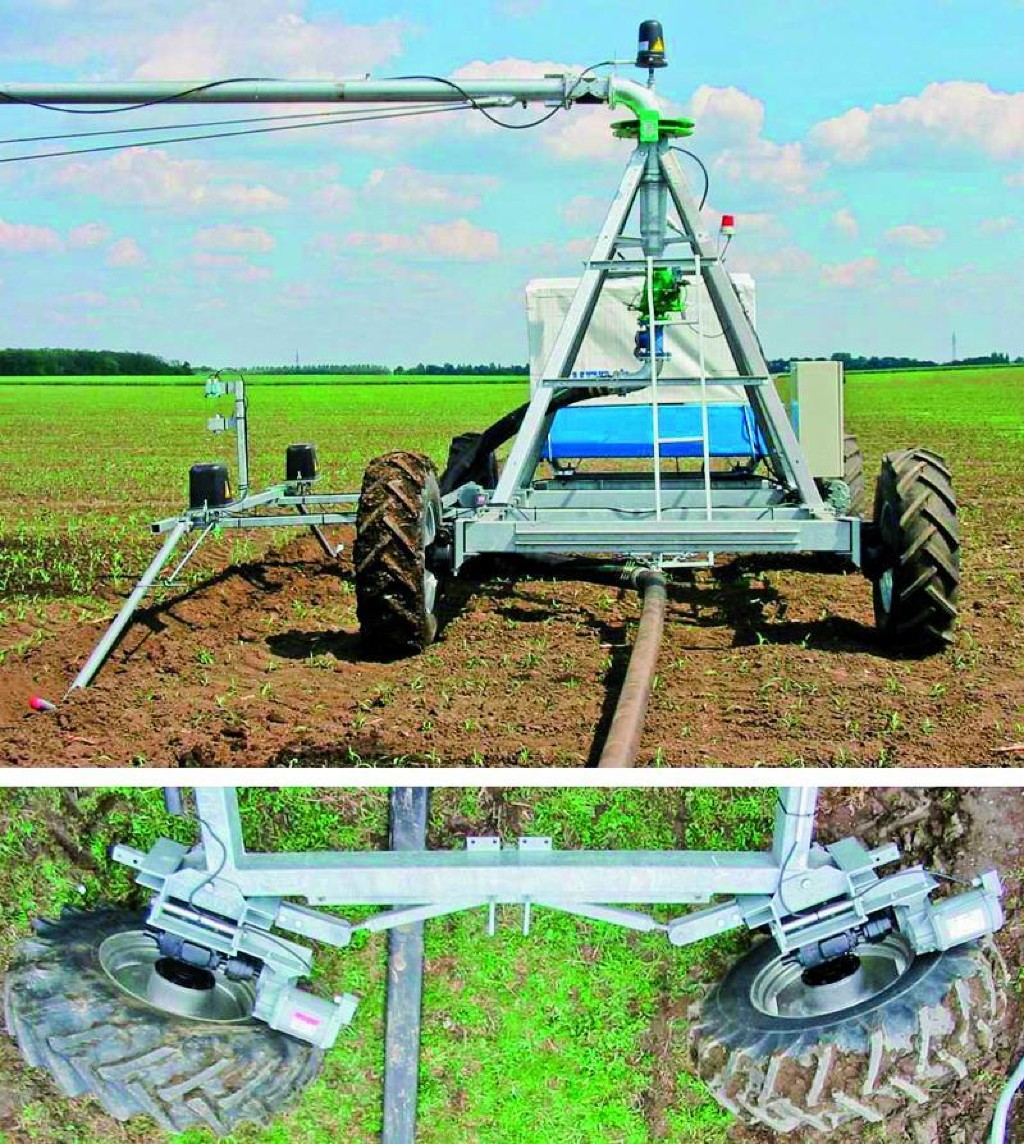

Standard extend of supply 168 CLX Multistar

  • Position control for rotation of the boom
  • Riser pipe complete
  • 4 drive motors 0,55kW - for turning the wheel and the complete drive cart into the desired direction with a control panel.
  • 4 gear boxes
  • flexible hose with chainguide - no declutching of the supply hose required with autoreverse at the field end!

towable: - design like 168 CLX - but with gear boxes with free-wheel device and drawbar for towing the central unit

- without tires

Design is still system 5000!

Item No. Article
8520174 Drive cart 168 CLX

Drive cart 168 CLX

with automatic swivel assembly for boom

Weight: not available
Product group: 33
8520175 Drive cart 168 CLX-T

Drive cart 168 CLX-T

towable, with automatic swivel assembly for boom

Weight: not available
Product group: 33

Note

Centerliner CLS "reinforced" design (reinforced gear boxes and 4 drive motors) -On request !

ATTENTION:
Systems of up to max. 7 Spans permitted
Centerliners CANNOT be towed via the overhang!

Tires

Item No. Article
8513825 Tires 14,9-24 - 4 wheels

Tires 14,9-24 - 4 wheels

for drive cart with "Traction - Profile" and galvanized rims

Weight: not available
Product group: 33
8513826 Tires 16,9-24 - 4 wheels

Tires 16,9-24 - 4 wheels

for drive cart with "Traction - Profile" and galvanized rims

Weight: not available
Product group: 33
Item No. Article (l) (m) (u/min) (4) Querschnittbreite(mm) (m³) (m) Außen Ø max.(mm) (m³) (mm) (kW) Tragfähigkeit bei 25 km/h min-max(kg) (mm) Luftdruck min-max(bar) (kW) (min-1) (left)
8503190 Electric shut-off valve DN 150

Electric shut-off valve DN 150

flanged connection DN150 with bolts and gaskets

Weight: 50 kg
Product group: 33

Generator units

Selecton of generator: Possible number of spans for different designs of drive carts w i t h o u t / w i t h booster pump:

Generator unit CLS/CLE CLX CLS/CLE + Booster CLX + Booster
11 kVA 4 - - -
15 kVA 7 5 4 3
20 kVA - 7 7 3



Item No. Article (l) (m) (u/min) (4) Querschnittbreite(mm) (m³) (m) Außen Ø max.(mm) (m³) (mm) (kW) Tragfähigkeit bei 25 km/h min-max(kg) (mm) Luftdruck min-max(bar) (kW) (min-1) (left)
0646516
Weight: 900 kg
Product group: 33
0646517
Weight: 900 kg
Product group: 33
0646518
Weight: 800 kg
Product group: 33
0646550 Generatoragg. F32AM1A + 20kVA

Generatoragg. F32AM1A + 20kVA

F32AM1A+20 KVA mit Tank 400 ltr. ND

Weight: 950 kg
Product group: 33
0646560 Generatoragg. 3029D+20kVA

Generatoragg. 3029D+20kVA

John DEERE 3029D+ 20kVA mit Tank 400ltr. ND

Weight: not available
Product group: 33
0648536
Weight: not available
Product group: 63

Supply hose

  • Made of PU in wear resistant design
  • Complete with BAUER HK-coupling
