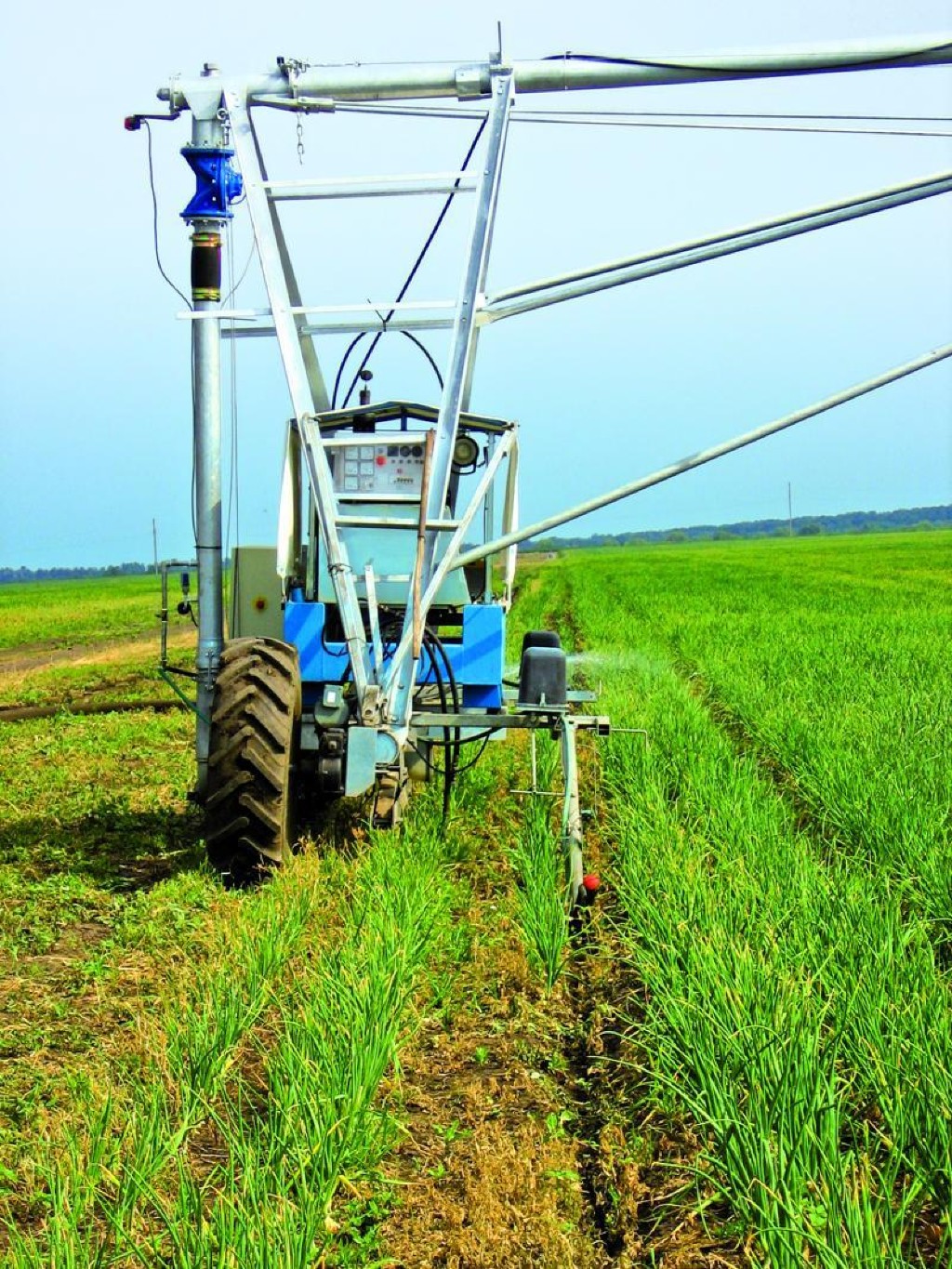

Standard extent of supply 2-wheel central unit for hose feed

One-sided feed (max. 7Span)

  • 2 gear boxes
  • 2 drive motors 0,55kW
  • Mounted riser pipe
  • Rotatable connection  HK133

- without wheels


Item No. Article Note
8520916 Drive Cart 168LL-E 2-wheel design for hose-feed

Drive Cart 168LL-E 2-wheel design for hose-feed

(w/o wheels) for one-side boom

Weight: 415 kg
Product group: 33
8520917 Drive Cart 168LL-ET 2 wheel design, towable for hose-feed With electrically swivelling wheel gear incl. freewheeling for towing and drawbar

Drive Cart 168LL-ET 2 wheel design, towable for hose-feed

(w/o wheels) for one-side boom - towable

Weight: 415 kg
Product group: 33
8519700 Swivelling device - hydraulic jack to swivel the boom Hydraulically lowering foot for swivelling of the boom cart

Swivelling device - hydraulic jack to swivel the boom

for Monostar

Weight: not available
Product group: 33
8505685 Double Connector HK133/5" - 2pcs. required (2 pcs. required)

Double Connector HK133/5" - 2pcs. required

.

Weight: 62 kg
Product group: 33
8513821 Tyres 16,9-24 - 2 wheels 1 x per span

Tyres 16,9-24 - 2 wheels

with "Traction - Profile" and galvanized rims

Weight: not available
Product group: 33
8513820 Tyres 14.9-24 - 2 wheels 1 x per span

Tyres 14.9-24 - 2 wheels

with "Traction - Profile" and galvanized rims

Weight: not available
Product group: 33

E-Abschaltventil für Steigleitung

Item No. Article Note
8503190 Electric shut-off valve DN 150 max. 280m³/h

Electric shut-off valve DN 150

flanged connection DN150 with bolts and gaskets

Weight: 50 kg
Product group: 33

Generator units

Selecton of generator units: possible number of spans for systems w i t h o u t / w i t h booster pump:

Generator unit 2/4-wheel drive cart 2/4-wheel drive cart + booster
11kVA 4 -
15 kVA 7 4
20 kVA 12 8
30 kVA 16 14




Item No. Article Note
0646516 Diesel generator unit KDW 1404+11kVA with 270ltr. fuel tank with 270 litre tank

Diesel generator unit KDW 1404+11kVA with 270ltr. fuel tank

KDW 1404 + 11 KVA with tank 270ltr.

Weight: 900 kg
Product group: 33
0646517 Diesel generator unit KDW 1603+15kVA with 300ltr. fuel tank with 300 litre tank

Diesel generator unit KDW 1603+15kVA with 300ltr. fuel tank

KDW1603CHD+15KVA with tank 300ltr. ND

Weight: 900 kg
Product group: 33
0646518 Diesel generator unit KDI 1903M+20kVA with 400ltr. fuel tank with 400 litre tank

Diesel generator unit KDI 1903M+20kVA with 400ltr. fuel tank

KDI 1903M+20KVA with tank 400ltr.

Weight: 800 kg
Product group: 33
0646550 Generator set F32AM1A + 20kVA with 400 litre tank

Generator set F32AM1A + 20kVA

F32AM1A+20 KVA with tank 400 ltr. ND

Weight: 950 kg
Product group: 33
0646556 Generator set F32AM1A +30kVA-S with 400 litre tank

Generator set F32AM1A +30kVA-S

F32AM1A+30 KVA with tank 400 ltr. for frame 851 7461

Weight: 1140 kg
Product group: 33
0646560 Diesel generator unit 3029D+20kVA with 400ltr. fuel tank with 400 litre tank

Diesel generator unit 3029D+20kVA with 400ltr. fuel tank

John DEERE 3029D+ 20kVA with tank 400ltr. ND

Weight: not available
Product group: 33
0648536 INOX Cover

INOX Cover

Weight: not available
Product group: 63

Supply hose

  • Made from PU- wear resistant
  • Complete with BAUER HK-coupling
Dimension Length Q
Ø4" / HK 108 max. 160m 120 m³/h
Ø4 1/2" / HK 133 max. 130m 150 m³/h
Ø5" / HK 133 max. 105m 200 m³/h
