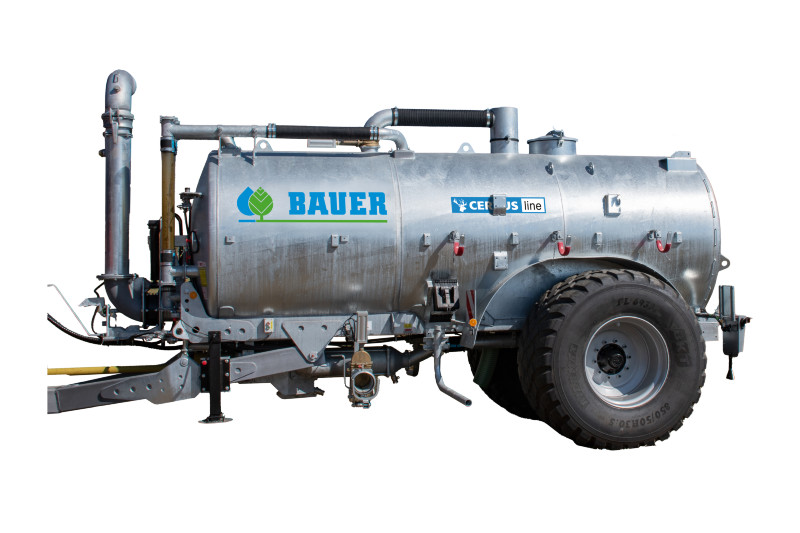

Standard extent of supply

• Self-supporting steel tank hot galvanized,
• Tank Ø 1550
• Continuous angular frame with 3 axle adjusting boreholes (P53 2pc.)
• Large dome with ladder and  overflow hose in the tank
• Rear opening for quick rinsing Ø500 mm
• Universal add-on unit for distributing systems
• Wheel cut-out in tank
• Linkage above PTO with support wheel
• Parking brake
• Hydraulic brake - 2 drums
• Filling level indicator at front
• Hose brackets on both sides, 3 pieces each
• BAUER eccentric rotor pump Ex 200/120
• Hydraulic 3-way gate valve at the rear for flow control 1xSA, BAUER socket HK 133
• Suction connection HK 159/6" with ventilating cock and quick coupler at front left, BAUER socket HK 159
• 3-chamber lighting with protection cover
• 2 baffle plates
• Spreader body HK133 with rear spread nozzle Ø60mm

Standard accessories:

• Spreader body HK 108 with rear spread nozzle; nozzle Ø 60mm
• Suction line 6" divided with 2 m hose und 3,5 pipe with bend
• PTO shaft wide angle one side with safety clutch 1⅜'' - 1⅜'' 6 nut, for eccentric rotor pump Ex 200/120

1. SIGNO

Technical detail

• Model: P92
• Tank(l): 9.170
• Pump type(l/min)*: E4000GLD
• Axle Track/pin: 1750 / 10
• Wheels size / PR / profile: 800/45-26,5 16PR T648
• Suct./Press.connect.: HK 159 / 133
