Standard Extent of Supply

  • mixer shaft with sturdy shaft running in oil bath
  • mixer blades with guards
  • PTO connection 1 3/8" with guard
  • universal lifting frame galvanized
  • without rope winch
  • with loose mixer trolley
  • mixer shaft and blades galvanized
  • minimum pit opening: 80 x 80 cm



MTX with 2 blades

Item No. Article Pit depth(m) Pit volume(m³) Mixing blade diameter(mm) Power(kW)
6340050 Mixer MTX 600/4m sucking 3.5 600 600 20

Mixer MTX 600/4m sucking

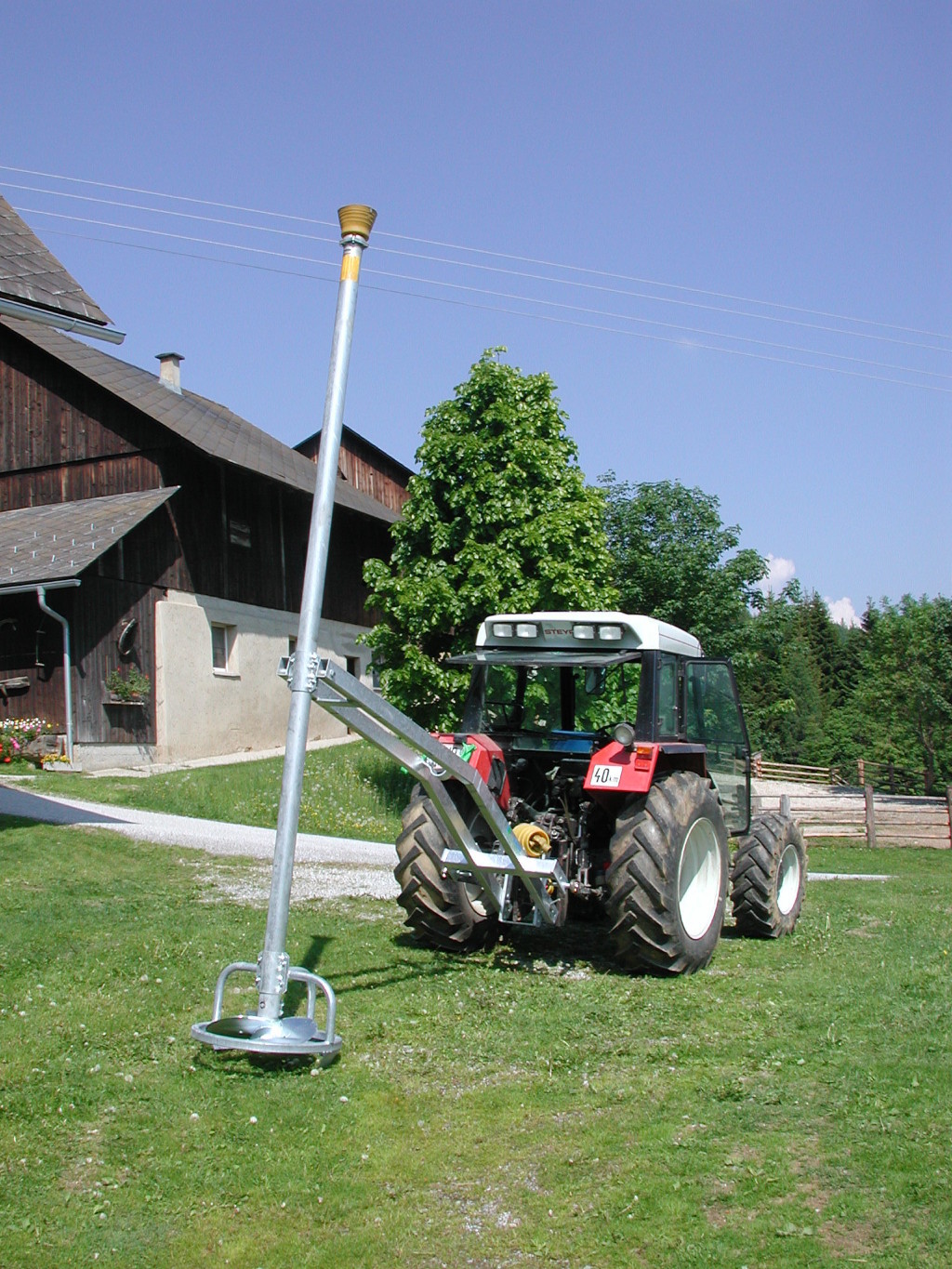

tractor mixer with 2 blades with shaft 4 m and frame

Weight: 236.05 kg
Product group: 44
6340051 Mixer MTX 600/4m pushing 3.5 600 600 20

Mixer MTX 600/4m pushing

tractor mixer with 2 blades with shaft 4 m and frame

Weight: 238.05 kg
Product group: 44
6340052 Mixer MTX 600/5m sucking 4.3 700 600 20

Mixer MTX 600/5m sucking

tractor mixer with 2 blades with shaft 5 m and frame

Weight: 253.05 kg
Product group: 44
6340053 Mixer MTX 600/5m pushing 4.3 700 600 20

Mixer MTX 600/5m pushing

tractor mixer with 2 blades with shaft 5 m and frame

Weight: 255.05 kg
Product group: 44
6340080 Mixer MTX2 750/4m sucking 3.5 1000 750 35

Mixer MTX2 750/4m sucking

tractor mixer with 2 blades with shaft 4 m and frame

Weight: 240.45 kg
Product group: 44
6340054 Mixer MTX 750/4m pushing 3.5 1000 750 35

Mixer MTX 750/4m pushing

tractor mixer with 2 blades with shaft 4 m and frame

Weight: 240.45 kg
Product group: 44
6340081 Mixer MTX2 750/5m sucking 4.3 1200 750 35

Mixer MTX2 750/5m sucking

tractor mixer with 2 blades with shaft 5 m and frame

Weight: 257.401 kg
Product group: 44
6340055 Mixer MTX 750/5m pushing 4.3 1200 750 35

Mixer MTX 750/5m pushing

tractor mixer with 2 blades with shaft 5 m and frame

Weight: 257.45 kg
Product group: 44

MTX with 3 blades

Item No. Article Pit depth(m) Pit volume(m³) Mixing blade diameter(mm) Power(kW)
6340056 Mixer MTX3 600/4m sucking 3.5 1000 600 35

Mixer MTX3 600/4m sucking

Tractor mixer 3-blades with shaft 4 m and hoist. frame

Weight: 234.001 kg
Product group: 44
6340058 Mixer MTX3 600/4m pushing 3.5 1000 600 35

Mixer MTX3 600/4m pushing

Tractor mixer 3-blades with shaft 4 m and hoist. frame

Weight: 234.001 kg
Product group: 44
6340057 Mixer MTX3 600/5m sucking 4.3 1200 600 35

Mixer MTX3 600/5m sucking

Tractor mixer 3-blades with shaft 5 m and hoist. frame

Weight: 251.001 kg
Product group: 44
6340059 Mixer MTX3 600/5m pushing 4.3 1200 600 35

Mixer MTX3 600/5m pushing

Tractor mixer 3-blades with shaft 5 m and hoist. frame

Weight: 253.001 kg
Product group: 44
