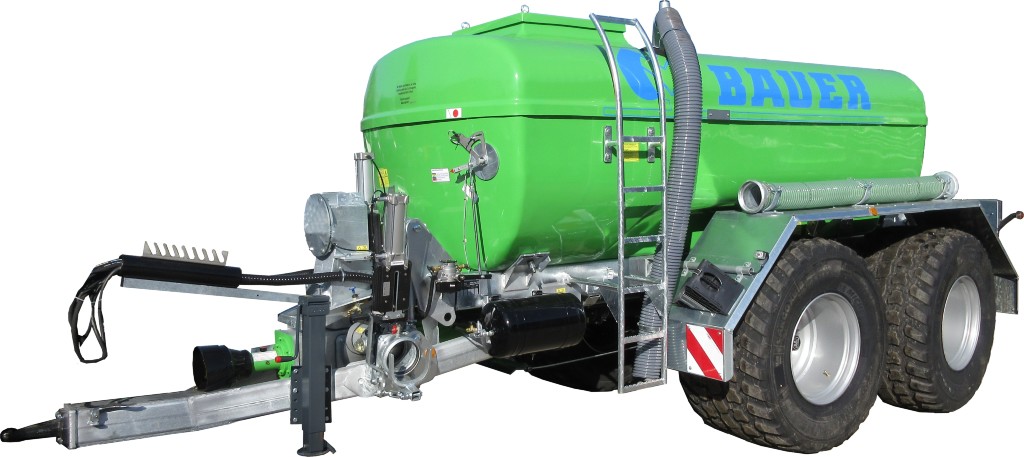

Polyester Tandem Pump Tanker
Standard extent of supply:
- Container made of polyester laminate
- - with gel coating, colour green
- - Baffle wall firmly laminated
- - Galvanized profile fram as a fixed drawbar
- - Wheel cut out over all wheels
- - Maintanance cover on the top approx. 600x600mm
- BAUER Tandem-Pendulum-Aggregate TDASL V, Reer axle steering with cam disc, single acting
- Flange towing eye DN40mm
- Double-circuit pneumatic system 25km/h
- ALB automatisch - lastabhängige - braking force control via
- Filling level sensor in the front container base
- Hose tray left and right (bei Anbaugeräten bedingt verwendbar)
- 1 crank support leg
- 2 wheel chocks
- Lighting device 25km/h
- BAUER eccentric screw pump E3000GLD
- Stone trap integrated in eccentric screw pump with draining cover
- Suction connection at the front left Bauer HK159 -Becher with quick coupler and ventilation cock
- Pressure line diameter. 133mm
- Outlet valve (three-way valve) hydraulic double acting Bauer HK133 cup
- Manual dosing device on the three-way slide, operated manually
- Overflow/ ventilation
- Operating and maintenance manual
Standardzubehör:
- Prallkopfverteiler mit Guß-Staunase, Bauer HK133 - Kugel mit Hebelverschlussring
- 6m Ansaugleitung geteilt mit Saugschutz (4m Rohr + 2m Schlauch) Bauer HK159 - Kugel für Schnellkuppler
- Gelenkwelle weitwinkel einseitig mit Rutschkupplung 1 3/8" - 1 3/8" 6-teilig, für Schneckenpumpe
